MAT-10 Automatic Tuner for YAESU FT-818 ICOM IC-705 Lab599 TX-500 QRP POTA S0TA
$ 92.22

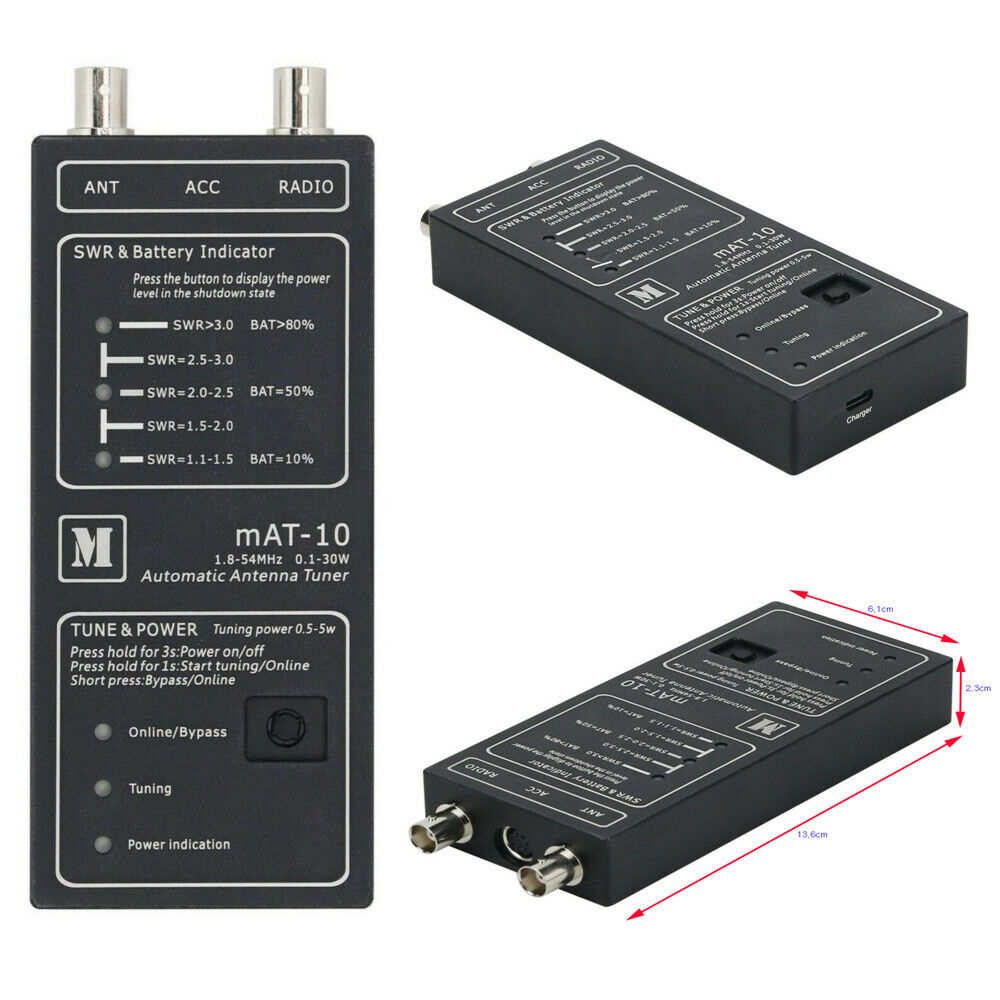

- MAT-10 Automatic Antenna Tuner for YAESU FT-818 ICOM IC-705 Lab599 TX-500 QRP POTA S0TA The mAT-10 is a compact and exquisite tuner designed for YAESU FT-817/818, it can also be used in other QRP transceivers. When it is connected to FT-817/818 through a dedicated control cable mAT-CY, it is a dedicated tuner, which can achieve convenient “one-key tuning”. If no control cable is used, it is a universal QRP tuner for all low-power transceivers. The mAT-10 is connected to the ACC port of the FT-817/818 transceiver through control cable. The ACC interface allows an external device such as a PC or the mAT-10 to control the FT-817/818 by sending it serial commands. The mAT-10 has the function of “one key tuning”. When the multi-function key on tuner is pressed, the mAT-10 will automatically control the start-up tuning of transceiver. When mAT-10 is used in other QRP transceivers, it does not need control cables and can work only by connecting RF cables. The tuning process can be completed by pressing the Multi-function on the panel, its operation is very simple. The three lights in the upper half of the tuner are used to display battery power or current SWR. In the shutdown state, after pressing the multi-function key, the three lights indicate the power level of the battery inside the tuner. On startup, these three lights are used to indicate the current SWR. The mAT-10 has only one button, which can realize multiple functions. Whether it’s for FT-817/818 or other transceivers, this button has the functions of switching power supply, starting tuning, switching online/bypass status, etc. The lower half of the tuner has three indicator lights, which are used to indicate “online/bypass”, “tuning process” and “power supply”. Also supports for other QRP stations. Specifications: – Max. 30W in SSB and CW modes, 5W in PSK and digital modes – 1.8to 54.0 MHz coverage.16,000 memories for instantaneous frequency – Tuning time: 0.1 to 5 seconds full tune, 0.1 seconds memory tune – To tune the load capacity of 5 to 1500 ohm antenna – For YAESU FT-817/818 radio via 8-core data cable – Can also be used as a QRP tuner – For dipoles, verticals, Vees, beams, long wire or any coax-fed antenna – Dimensions: 13.8cm x 6.1cm x 2.3cm (L x W x H) – Weight: 300g Package Included: – 1 x mAt-10 Automatic Antenna Tuner – 1 x Charger – 1 x Data Cable – 1 x Manual
